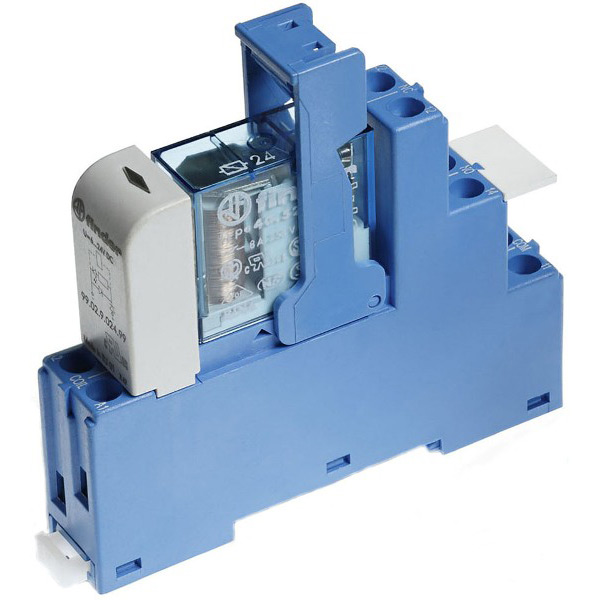

Finder Koppelrelais 49.52/49.72
- Koppelrelais, 2 Wechsler, 15,5 mm breit mit integrierter EMV-Spulenbeschaltung
- Spulen für AC, DC und DC sensitiv, 500 mW
- Sichere Trennung zwischen Spule und Kontaktsatz nach EN 50178, EN 60204 und EN 60335
- 6 kV (1,2/50 μs), 8 mm Luft- und Kriechstrecke
- Verbrauchte Schaltrelais leicht austauschbar
- Modulserie 99.80
- Anschlüsse mit Schraub- oder Zugfederklemmen
| Typ | 49.52 49.72 |
|---|---|
| Anzahl Wechsler | 2 |
| Max. Dauerstrom | 8 A |
| Montage | Schraub- oder Zugfederklemmen |
| Artikel-Nr. | Spulen- erregung |
Spulen- spannung |
Kontakt- material |
Kontakt- art |
Option | Ausführung |
|---|---|---|---|---|---|---|
| 49.52.7.012.0050-03 | DC sensitiv (500 mW) |
12 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.7.012.5050-03 | DC sensitiv (500 mW) |
12 V | AgNi+Au (5 µm) |
Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.7.024.0050-03 | DC sensitiv (500 mW) |
24 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.7.024.0650-03 | DC sensitiv (500 mW) |
24 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.7.024.2050-03 | DC sensitiv (500 mW) |
24 V | AgCdO | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.7.024.5050-03 | DC sensitiv (500 mW) |
24 V | AgNi+Au (5 µm) |
Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.7.024.5051-03 | DC sensitiv (500 mW) |
24 V | AgNi+Au (5 µm) |
Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
|
| 49.52.7.048.0050-03 | DC sensitiv (500 mW) |
48 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.7.110.0050-03 | DC sensitiv (500 mW) |
110 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.8.012.0060-03 | AC (50/60 Hz) |
12 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.012.5060-03 | AC (50/60 Hz) |
12 V | AgNi+Au (5 µm) |
Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.024.0060-03 | AC (50/60 Hz) |
24 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.024.0061-03 | AC (50/60 Hz) |
24 V | AgNi | Wechsler | grüne LED +Varistor |
|
| 49.52.8.024.0062-03 | AC (50/60 Hz) |
24 V | AgNi | Wechsler | grüne LED +Varistor |
|
| 49.52.8.024.2060-03 | AC (50/60 Hz) |
24 V | AgCdO | Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.024.5060-03 | AC (50/60 Hz) |
24 V | AgNi+Au (5 µm) |
Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.048.0060-03 | AC (50/60 Hz) |
48 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.048.5060-03 | AC (50/60 Hz) |
48 V | AgNi+Au (5 µm) |
Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.110.0060-03 | AC (50/60 Hz) |
110 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.120.0060-03 | AC (50/60 Hz) |
120 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.230.0040-03 | AC (50/60 Hz) |
230 V | AgNi | Wechsler | Standard | |
| 49.52.8.230.0060-03 | AC (50/60 Hz) |
230 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.230.0061-03 | AC (50/60 Hz) |
230 V | AgNi | Wechsler | grüne LED +Varistor |
|
| 49.52.8.230.0070-03 | AC (50/60 Hz) |
230 V | AgNi | Wechsler | Standard | |
| 49.52.8.230.2060-03 | AC (50/60 Hz) |
230 V | AgCdO | Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.230.5020-03 | AC (50/60 Hz) |
230 V | AgNi+Au (5 µm) |
Wechsler | Standard | |
| 49.52.8.230.5042-03 | AC (50/60 Hz) |
230 V | AgNi+Au (5 µm) |
Wechsler | ||
| 49.52.8.230.5060-03 | AC (50/60 Hz) |
230 V | AgNi+Au (5 µm) |
Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.230.5061-03 | AC (50/60 Hz) |
230 V | AgNi+Au (5 µm) |
Wechsler | grüne LED +Varistor |
|
| 49.52.8.230.5062-03 | AC (50/60 Hz) |
230 V | AgNi+Au (5 µm) |
Wechsler | grüne LED +Varistor |
|
| 49.52.8.240.0060-03 | AC (50/60 Hz) |
240 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.52.8.240.0061-03 | AC (50/60 Hz) |
240 V | AgNi | Wechsler | grüne LED +Varistor |
|
| 49.52.8.240.0062-03 | AC (50/60 Hz) |
240 V | AgNi | Wechsler | grüne LED +Varistor |
|
| 49.52.9.006.0050-03 | DC (650 mW) |
6 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.012.0050-03 | DC (650 mW) |
12 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.012.0650-03 | DC (650 mW) |
12 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.012.2050-03 | DC (650 mW) |
12 V | AgCdO | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.012.5050-03 | DC (650 mW) |
12 V | AgNi+Au (5 µm) |
Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.024.0050-03 | DC (650 mW) |
24 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.024.0051-03 | DC (650 mW) |
24 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
|
| 49.52.9.024.0052-03 | DC (650 mW) |
24 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
|
| 49.52.9.024.0060-03 | DC (650 mW) |
24 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.52.9.024.0080-03 | DC (650 mW) |
24 V | AgNi | Wechsler | Standard | |
| 49.52.9.024.0650-03 | DC (650 mW) |
24 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.024.0660-03 | DC (650 mW) |
24 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.52.9.024.2050-03 | DC (650 mW) |
24 V | AgCdO | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.024.5050-03 | DC (650 mW) |
24 V | AgNi+Au (5 µm) |
Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.024.5051-03 | DC (650 mW) |
24 V | AgNi+Au (5 µm) |
Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
|
| 49.52.9.024.5052-03 | DC (650 mW) |
24 V | AgNi+Au (5 µm) |
Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
|
| 49.52.9.024.5060-03 | DC (650 mW) |
24 V | AgNi+Au (5 µm) |
Wechsler | grüne LED +Varistor |
Standard |
| 49.52.9.048.0050-03 | DC (650 mW) |
48 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.060.0050-03 | DC (650 mW) |
60 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.060.5050-03 | DC (650 mW) |
60 V | AgNi+Au (5 µm) |
Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.110.0050-03 | DC (650 mW) |
110 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.110.5050-03 | DC (650 mW) |
110 V | AgNi+Au (5 µm) |
Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.52.9.125.0050-03 | DC (650 mW) |
125 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.72.7.024.0050-03 | DC sensitiv (500 mW) |
24 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.72.7.024.2050-03 | DC sensitiv (500 mW) |
24 V | AgCdO | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.72.7.024.5050-03 | DC sensitiv (500 mW) |
24 V | AgNi+Au (5 µm) |
Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.72.8.012.0060-03 | AC (50/60 Hz) |
12 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.72.8.024.0060-03 | AC (50/60 Hz) |
24 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.72.8.024.0062-03 | AC (50/60 Hz) |
24 V | AgNi | Wechsler | grüne LED +Varistor |
|
| 49.72.8.110.0060-03 | AC (50/60 Hz) |
110 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.72.8.230.0060-03 | AC (50/60 Hz) |
230 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.72.8.230.0062-03 | AC (50/60 Hz) |
230 V | AgNi | Wechsler | grüne LED +Varistor |
|
| 49.72.8.230.0070-03 | AC (50/60 Hz) |
230 V | AgNi | Wechsler | Standard | |
| 49.72.8.230.2060-03 | AC (50/60 Hz) |
230 V | AgCdO | Wechsler | grüne LED +Varistor |
Standard |
| 49.72.8.230.5060-03 | AC (50/60 Hz) |
230 V | AgNi+Au (5 µm) |
Wechsler | grüne LED +Varistor |
Standard |
| 49.72.9.012.0050-03 | DC (650 mW) |
12 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.72.9.024.0002-03 | DC (650 mW) |
24 V | AgNi | Wechsler | ||
| 49.72.9.024.0050-03 | DC (650 mW) |
24 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.72.9.024.0051-03 | DC (650 mW) |
24 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
|
| 49.72.9.024.0052-03 | DC (650 mW) |
24 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
|
| 49.72.9.024.0060-03 | DC (650 mW) |
24 V | AgNi | Wechsler | grüne LED +Varistor |
Standard |
| 49.72.9.024.0062-03 | DC (650 mW) |
24 V | AgNi | Wechsler | grüne LED +Varistor |
|
| 49.72.9.024.0650-03 | DC (650 mW) |
24 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.72.9.024.2050-03 | DC (650 mW) |
24 V | AgCdO | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.72.9.024.4650-03 | DC (650 mW) |
24 V | AgSnO2 | grüne LED+Frei- laufdiode (+ an A1) |
Standard | |
| 49.72.9.024.5050-03 | DC (650 mW) |
24 V | AgNi+Au (5 µm) |
Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.72.9.024.5060-03 | DC (650 mW) |
24 V | AgNi+Au (5 µm) |
Wechsler | grüne LED +Varistor |
Standard |
| 49.72.9.024.5062-03 | DC (650 mW) |
24 V | AgNi+Au (5 µm) |
Wechsler | grüne LED +Varistor |
|
| 49.72.9.060.0050-03 | DC (650 mW) |
60 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
| 49.72.9.110.0050-03 | DC (650 mW) |
110 V | AgNi | Wechsler | grüne LED+Frei- laufdiode (+ an A1) |
Standard |
