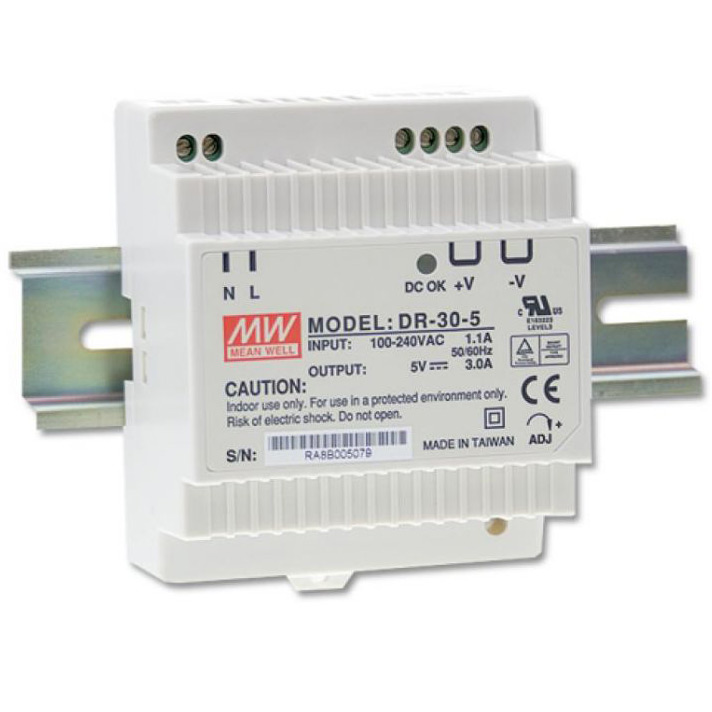

Schaltnetzgerät DR 30

Schaltnetzgerät DR 30, Netzgerät einphasig, Ausgang 24 VDC, 30 W, 1,5 A, Eingangsbereich 85 - 264 VAC, weitere Ausgangsgrößen auf Anfrage, Montage auf DIN-Schiene





Netzgerät für die 24 VDC Spannungsversorgung
der Steuerstromkreise bis 36 W und 1,5 A

Merkmale
  • einphasiges Netzteil mit geringen Baumaßen
  • Eingangsbereich 85 - 264 VAC
  • Ausgangsgrößen 24 VDC, 36 W, 1,5 A
  • weitere Ausgangsgrößen auf Anfrage
DR_030.pdf (198,8 KiB)
Technische Daten
MODEL DR-30-5 DR-30-12 DR-30-15 DR-30-24
OUTPUT
DC VOLTAGE 5V 12V 15V 24V
RATED CURRENT 3A 2A 2A 1.5A
CURRENT RANGE 0-3A 0-2A 0-2A 0-1.5A
RATED POWER 15W 24W 30W 36W
RIPPLE & NOISE (max.) Note.2 80mVp-p 120mVp-p 120mVp-p 150mVp-p
VOLTAGE ADJ. RANGE 4.75 - 5.5V 10.8 - 13.2V 13.5 - 16.5V 21.6 - 26.4V
VOLTAGE TOLERANCE Note.3 ±2.0% ±1.0% ±1.0% ±1.0%
LINE REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
LOAD REGULATION ±1.0% ±1.0% ±1.0% ±1.0%
SETUP, RISE TIME 100ms, 30ms/230VAC 100ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 100ms/230VAC 21 ms/115VAC at full load
INPUT
VOLTAGE RANGE 85 - 264VAC 120 - 370VDC
FREQUENCY RANGE 47-63Hz
EFFICIENCY(Typ.) 74% 81% 82% 83%
AC CURRENT (Typ.) 0.88A/115VAC 0.48A/230VAC
INRUSH CURRENT (Typ.) COLD START 15A/115VAC 30A/230VAC
PROTECTION
OVERLOAD 105 - 160% rated output power
Protection type : Constant current   limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75 - 6.75V 13.8 - 16.2V 17.25 - 20.25V 27.6 - 32.4V
Protection type : Shut down o/p   voltage, re-power on to recover
ENVIRONMENT

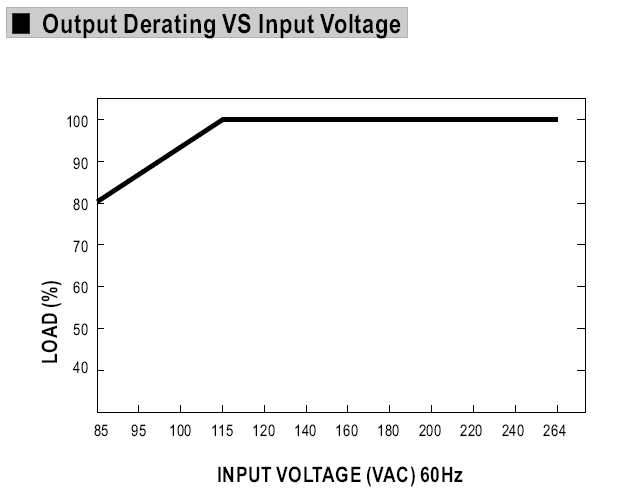

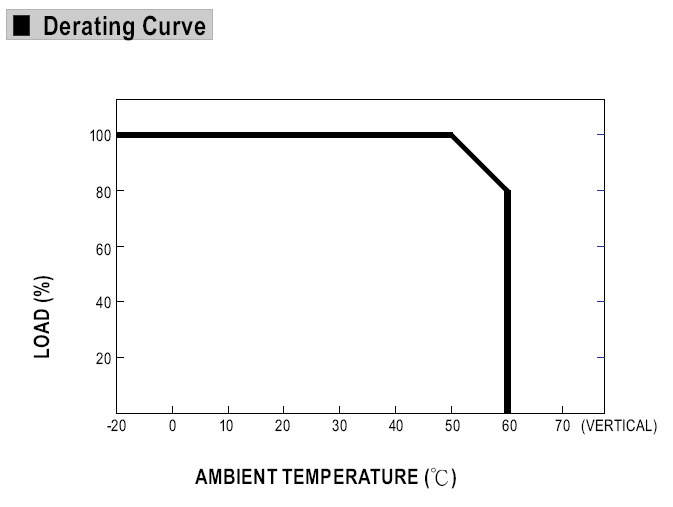

WORKING TEMP.  -20 - +60°C (Refer to "Derating   Curve")
WORKING HUMIDITY 20 - 90% RH non-condensing
STORAGE TEMP., HUMIDITY  -40 - +85°C, 10 - 95% RH
TEMP. COEFFICIENT ±0.03%/°C   (0 - 50°C )
VIBRATION 10 - 500Hz, 2G 10min./1 cycle, period for 60min. each along X,   Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY & EMC
(Note 4)
SAFETY STANDARDS UL60950-1, TUV EN60950-1 approved, Design refer to EN50178
WITHSTAND VOLTAGE I/P-0/P:3KVAC
ISOLATION RESISTANCE I/P-0/P:100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSION Compliance to EN55011, EN55022 (CISPR22) Class B,   EN61000-3-2,-3
EMC IMMUNITY Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
OTHERS
MTBF 441.5K hrs min. MIL-HDBK-217F (25°C)

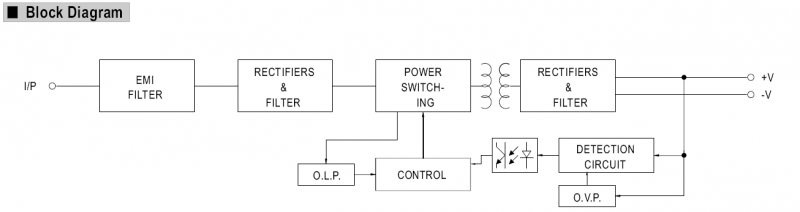

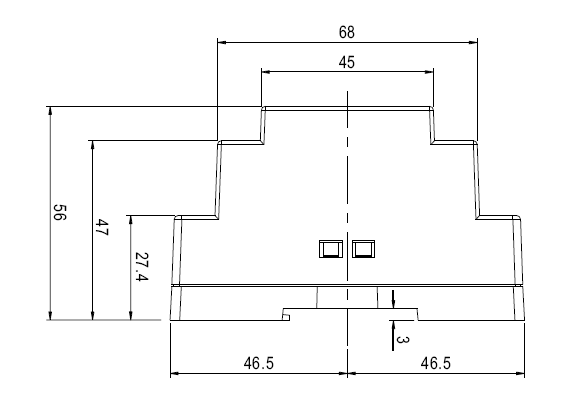

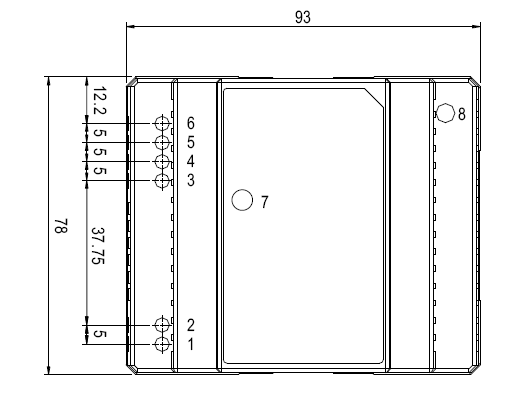

DIMENSION 78*93*56mm (W*H*D)
PACKING 0.27Kg; 48pcs/14Kg/1.02CUFT

NOTE

1.All parameters NOT specia y mentioned are measured at 230VAC input, rated load   and 25t of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 & 47uf parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets   EMC directives.

Bestellnummer Schaltnetzgeräte Serie DR-30
Artikel-Nr. Typ Beschreibung
DR-30-5-26 DR-30-5 85-264 VAC, 5 V, 3 A
DR-30-12-26 DR-30-12 85-264 VAC, 12 V, 2 A
DR-30-15-26 DR-30-15 85-264 VAC, 15 V, 2 A
DR-30-24-26 DR-30-24 85-264 VAC, 24 V, 1,5 A
